Affordable, Scalable

Access Control System

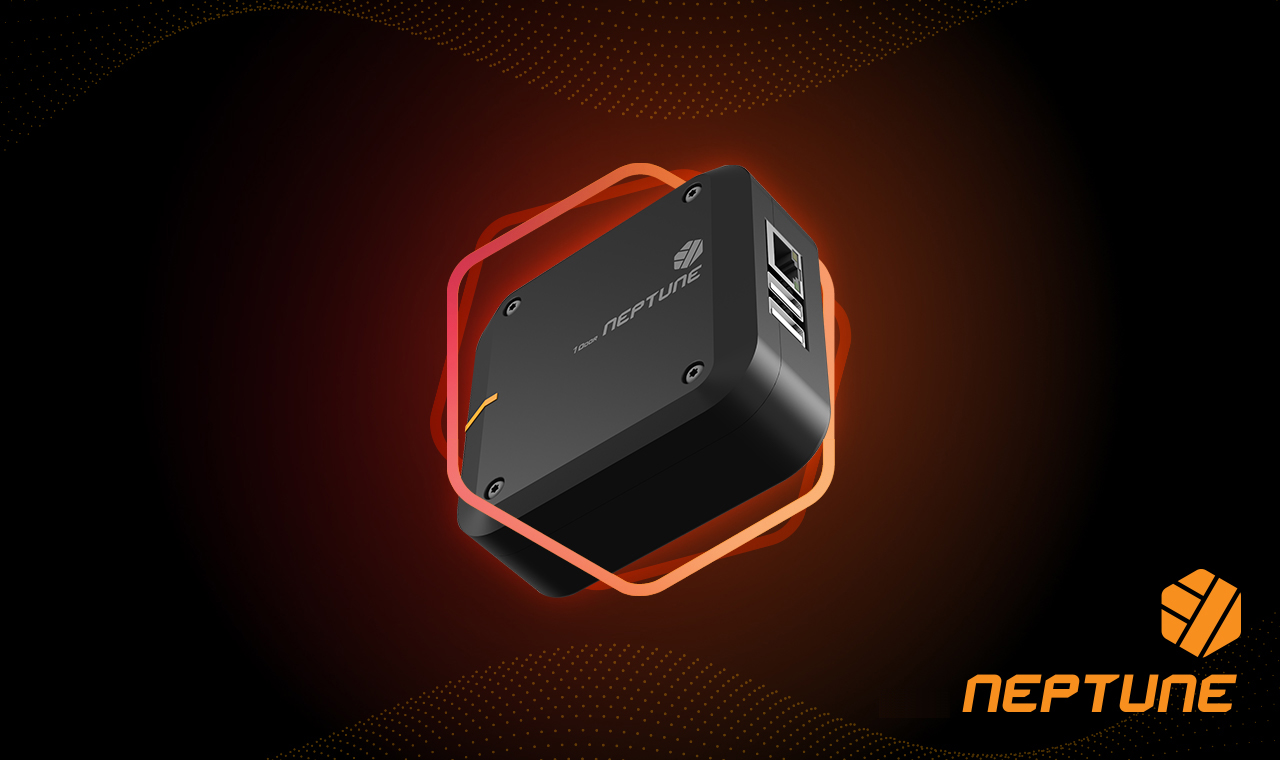

The Neptune systems is comprehensive embedded OS and browser-managed access control systems.
The proven Neptune systems delivers faster set-up, enhanced features, and scalability with tens of thousands systems installed.
These feature-rich, self-contained access systems are designed for small & mid-sized applications where users need to
secure their facilities, manage access of personnel, create and analyze reports, and monitor the system remotely.
The Neptune Series’ comprehensive wizard is fast and intuitive, saving significant set-up time.

Small and Strong

It’s Compact.

Smart and Powerful features

Compact, but Impact.

UL 294 Listed
Browser
Managed
Cloud
Management
Secure
Multiple User
Privileges
Emergency
Lockdown
Scalability
Low total cost
of ownership

SMART & SIMPLE User Interface

Neptune is a browser based access control platform that does not require a PC with dedicated software.
Out-of-the-box you can manage the system from your mobile device or any PC using your favorite browser.
Our easy to use interface enables easy set-up using the Wizzard and integrated tools for user data import.

Which NEPTUNE is right for you?

“We have a solution to fit your needs and your budget. Our systems are scalable to fit your needs from one door, stand alone access control, to multi-door, multi-floor, multi-tenant access control. Combined with our video integration and cloud based mobile application, you will be able to securely manage and check on your facility everywhere and at any time of the day or night.”

“Small or large systems will benefit from our low total cost of ownership. No dedicated PC’s or servers are required. No special software to install or maintain. Modular hardware and upgradable software makes it easy to expand and maintain existing systems.”

Advantage
Professional
Corporate

Neptune 1DM

Components

Main Body
Power Cable / Data Cable

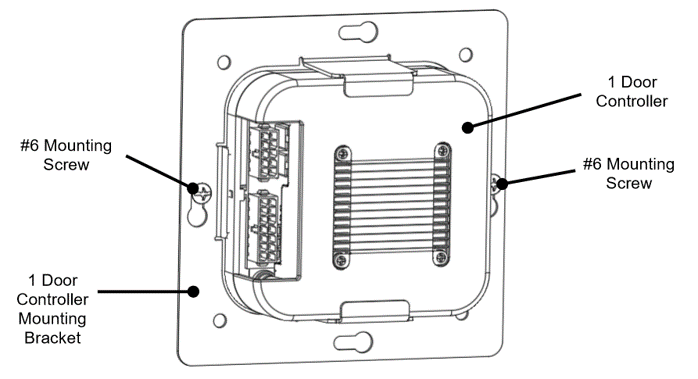

1 Door Controller

Enclosure Size (W x H x D) 3.2 x 3.0 x 1.3 in (81 x 78 x 32 mm)

14 Pin Reader Harness
Input Power
PIN	Color	Description
1	RED	+12 VDC Power for In & Out Readers
3	BLUE	LED, In & Out Readers
5	Orange	Buzzer, In & Out Readers
7	GREEN	D0, In Reader
9	WHITE	D1, In Reader
11	GREEN	D0, In Reader
13	WHITE	Systems Panels
2	BLACK	Ground, In & Out Readers
Door Input
14	PERPLE	Door Position Input
12	BLACK	Ground
10	YELLOW	Request to Exit Input
System Input
8	GRAY	AUX Input
6	BROWN	Tamper
4	GRAY	Power Fault
12	BLACK	Ground

10 Position Power Harness
Input Power
PIN	Color	Description
10	BLACK	Ground
9	Red	+12 VDC @2A
Door Output
7	GREEN	Normally Colosed Dry Replay Contact
5	BLUE	Common Replay Contact
3	GRAY	Normally Colosed Dry Replay Contact
Auxiliary Output
8	GREEN	Normally Colosed Dry Replay Contact
6	WHITE	Common Replay Contact
4	GRAY	Normally Colosed Dry Replay Contact
2	BLACK	Ground
1	BLACK	Ground

1 Door Controller Specifications

System
CPU	Cortex A53, Quad-Core, 1.5GHz, 64 Bit
Memory	1GB DDR3 plus 8 GB eMMc
OS	Linux
Database	SQL
Data Integrity	End to End Encryption, SSL, AES256
System Backup	Each panel retains a copy of database for redundancy,microSD, FTP
Network	GB Ethernet
microSD, USB	1X & 2X

Inputs
Tamper Digital Input	1
Power Fault Digital Input	1
Supported Doors	1
In Readers (Wiegand)	1
Out Readers (Wiegand)	1
REX Digital Inputs	1
Door Position Digital Input	1
Auxiliary Digital Inputs	1

Ratings
Wiegand Reader Power (output)	12VDC @ 0.5 Amps, Fused
Wiegand Reader Input Rating	0-5V DC with Transient Voltage Suppression
Digital Input Rating	0-5V DC with Transient Voltage Suppression
Door Lock Output / Form C Dry Contact	12 VDC @ 0.5A, Fused
Door Lock Output Rating	12VDC @ 0.5 Amps
Auxiliary Output / Form C Dry Contact	12V DC @ 0.5A, Fused
Auxiliary Output Rating	12V DC @ 0.5 A
Power Requirement	12V DC, 24 Watts
