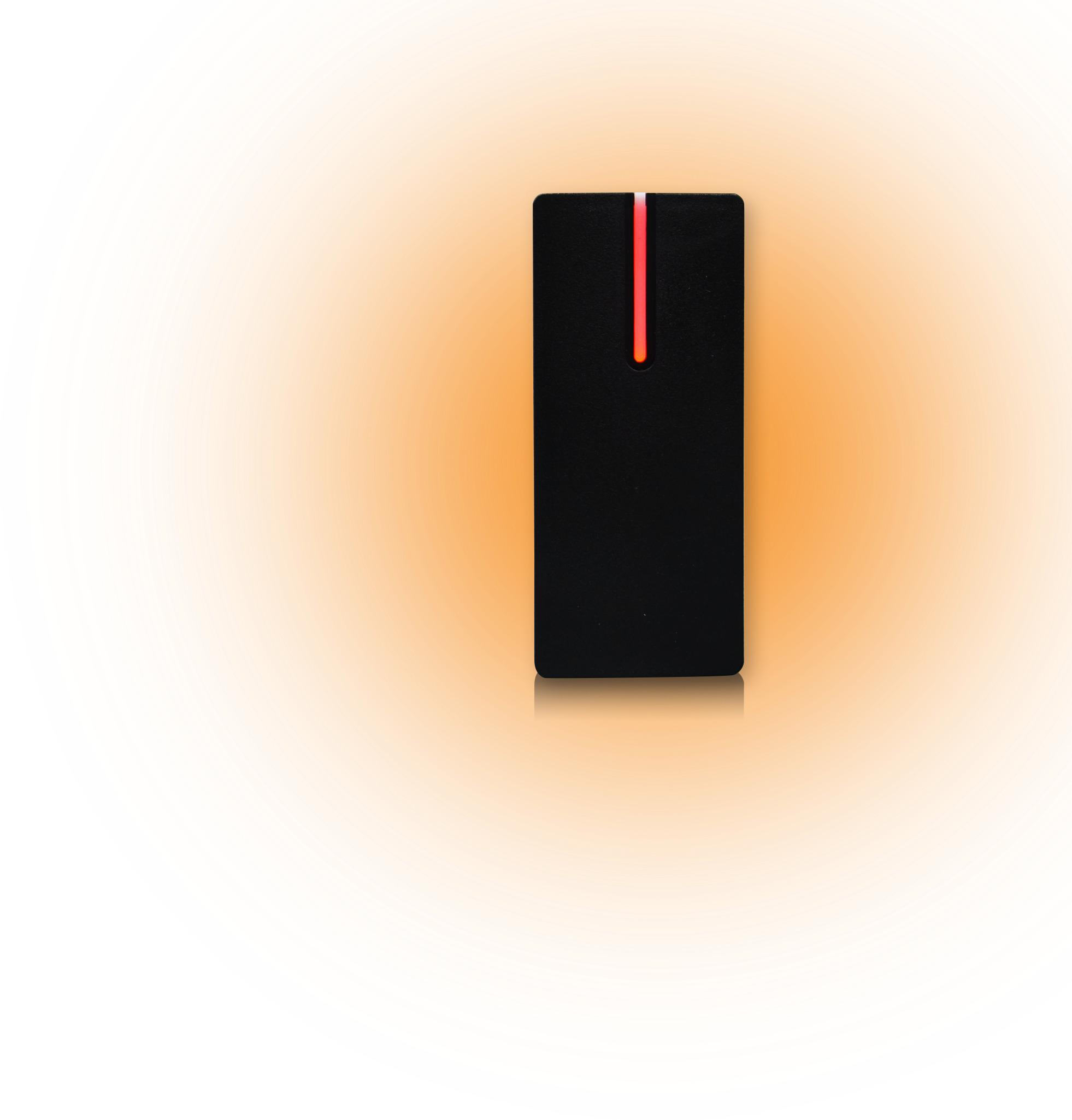

IC-RDR-M

alt4 ITEM 이미지
  • Strong durable case serves as an anti-vandal security system
  • Low power consumption, standby current less than 30mA
  • Standard WG26/34 output
  • Fast Searching Speed: less than 0.1S between reading card and opening the door
  • Waterproof design - Encapsulated

  • Specifications:

    Card Type IC / MF (Mifare)
    Transmit Format WG 26 / WG 34
    Outdoor / Waterproof Rating IP68
    Operating Voltage 9 - 12 VDC
    Current Draw 30 mA
    Read Range 1 - 3"
    Temperature -49 to 140F
    Humidity 10% ~90% RH
    Dimensions 3.35" X 2.13" X .31"
    Weight (Oz) 13

  • Wiring:

    Wiring No Function Color Description
    1 LED Blue Connect controller LED
    2 Beeper Yellow Connect controller Beeper
    3 D0 Green WG output line D0
    4 D1 White WG output line D1
    5 +12V Red Power supply +12V
    6 GND Black Power supply -12V
    7 WG34 Grey Grey wire connects GND to transmit WG34 output format

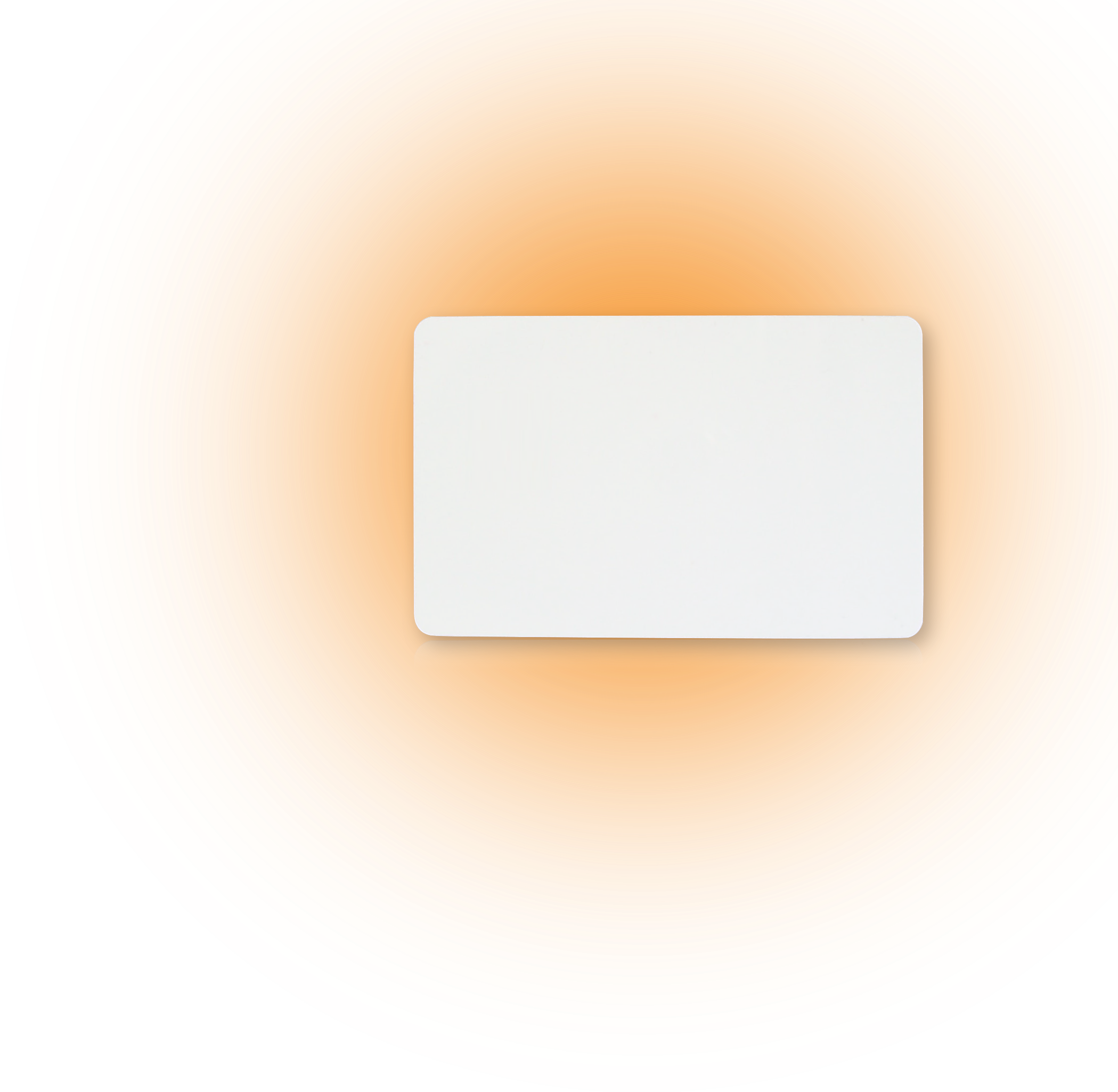

IC-CRD-25

alt4 ITEM 이미지
  • Package of 25 sequential ordered, RFID Smart Card IC 13.5 MHz
  • ISO Thickness – printable on one side.
  • Each card has a unique serial number of 32 bits

Specifications:

  • · Reading range 2” – 4”
  • · Reading Times Unlimited
  • · Operation Temperature -20°C~50°C
  • · Operating Humidity <90%
  • · Dimensions (inches) 3.34 x 2.12 x 0.03
  • · Compatible with IC-RDR-M (Mullion)

IC Sector Overview:

  • · 8K bit EEPROM Capacity
  • · It is divided into 16 sectors, each of which has 4 blocks, each block has 16 bytes, unit is block
  • · Each sector has its own set of passwords and access controls
  • · With anti - conflict mechanism, support multi-card operation
  • · Built-in antenna induction powered, includes encryption control logic and communication logic circuit Communication Speed 106 KBPS
  • · Data saved time 10 years
  • · Overwrite Times 100,000 times
